PVC FILLS
PVC fills, also known as PVC cooling tower fills or PVC fill media, are an integral component of cooling towers. They are used to facilitate the efficient exchange of heat and moisture between the air and the water in the cooling tower. PVC fills consist of a series of closely spaced corrugated sheets or vertical bars made from polyvinyl chloride (PVC) material

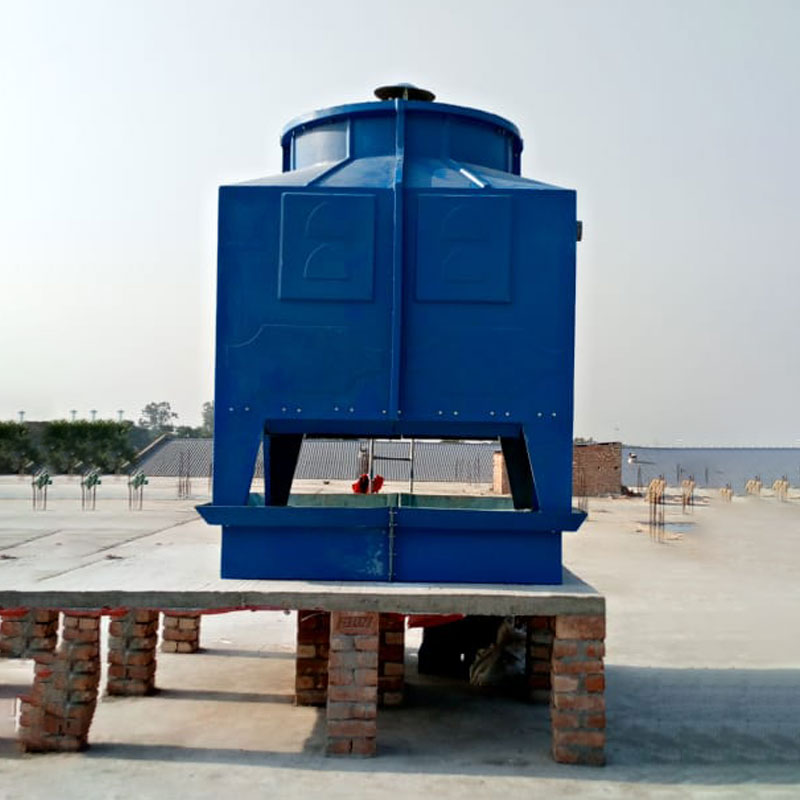

TECHNICAL DATA SHEET OF FRP SQUARE TYPE COOLING TOWERS
| Model No. | Capacity TR | Length MM | Width MM | Height MM | Fan Dia MM | Motor HP/RPM | Operating Weigth KG | Pump Head MM |
| JCT SQ 001 | 5 TR | 600 | 600 | 1950 | 450 | 1/1400 | 150 | 1800 |
| JCT SQ 001 A | 10 TR | 750 | 750 | 2050 | 450 | 1/960 | 200 | 1800 |
| JCT SQ 002 | 15 TR | 900 | 900 | 2100 | 700 | 1/960 | 275 | 2000 |
| JCT SQ 002 A | 20 TR | 1050 | 1050 | 2200 | 750 | 2/1400 | 360 | 2000 |
| JCT SQ 003 | 25 TR | 1200 | 1200 | 2300 | 900 | 2/960 | 450 | 2400 |
| JCT SQ 004 | 30 TR | 1200 | 1200 | 2300 | 900 | 2/960 | 500 | 2400 |
| JCT SQ 005 | 40 TR | 1200 | 1200 | 2300 | 900 | 2/960 | 650 | 2400 |
| JCT SQ 006 | 50 TR | 1500 | 1500 | 2700 | 1200 | 3/960 | 850 | 2900 |
| JCT SQ 007 | 60 TR | 1500 | 1500 | 2700 | 1200 | 3/960 | 1000 | 3100 |
| JCT SQ 007 A | 70 TR | 1800 | 1800 | 3000 | 1350 | 3/960 | 1000 | 3100 |
| JCT SQ 008 | 80 TR | 1800 | 1800 | 3000 | 1350 | 5/960 | 1300 | 3300 |
| JCT SQ 009 | 100 TR | 2100 | 2100 | 3000 | 1450 | 5/960 | 1600 | 3300 |
| JCT SQ 10 | 125 TR | 2100 | 2100 | 3000 | 1500 | 5/960 | 2050 | 3300 |
| JCT SQ 11 | 150 TR | 2400 | 2400 | 3000 | 1500 | 7.5/960 | 2300 | 3400 |
| JCT SQ 12 | 175 TR | 3000 | 3000 | 2850 | 1800 | 7.5/960 | 3000 | 3500 |
| JCT SQ 13 | 200 TR | 3000 | 3000 | 2850 | 1800 | 7.5/760 | 3500 | 3500 |
| JCT SQ 14 | 250 TR | 3600 | 3000 | 2900 | 1800 | 10/960 | 4100 | 3800 |
| JCT SQ 15 | 300 TR | 3600 | 3600 | 2900 | 1800 1 | 10/750 | 4900 | 4300 |
| JCT SQ 16 | 350 TR | 3600 | 4200 | 2900 | 1450 2 | 7.5 2/960 | 5300 | 4400 |
| JCT SQ 17 | 400 TR | 4200 | 4200 | 2900 | 1500x 2 | 10 2/960 | 6000 | 4500 |
